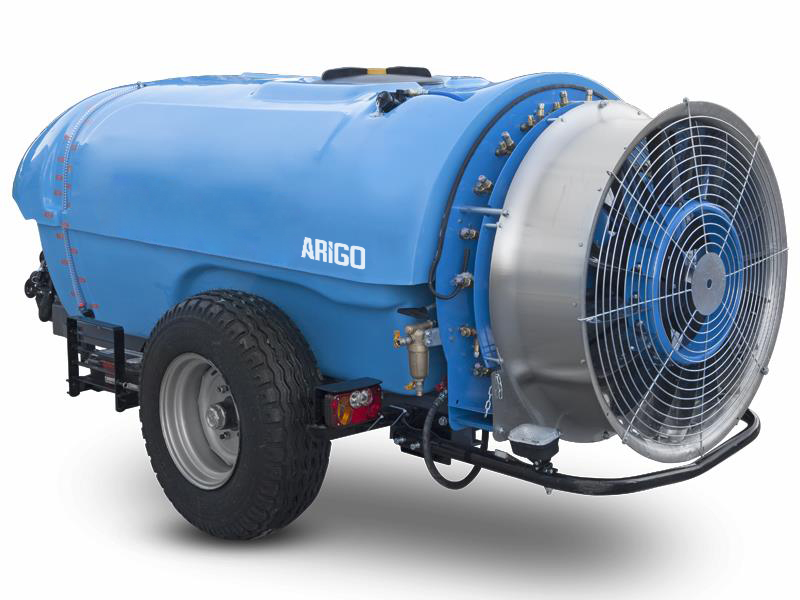

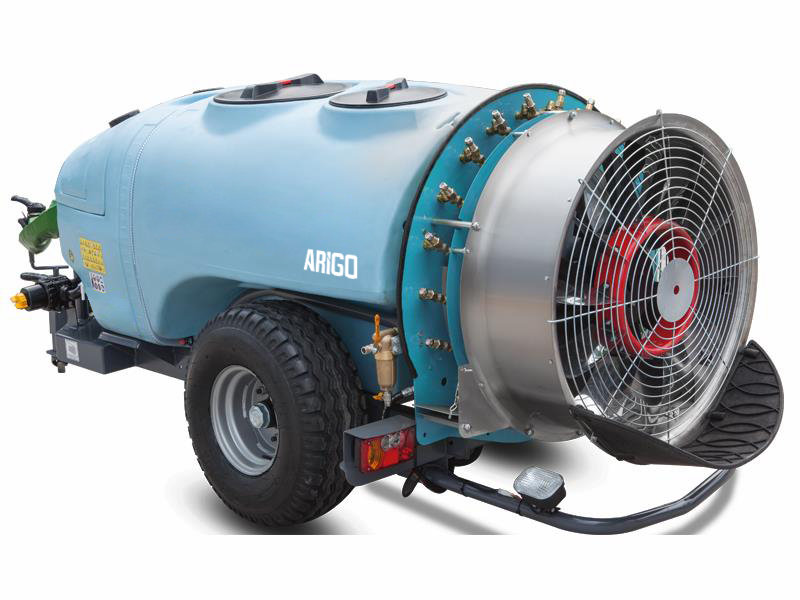

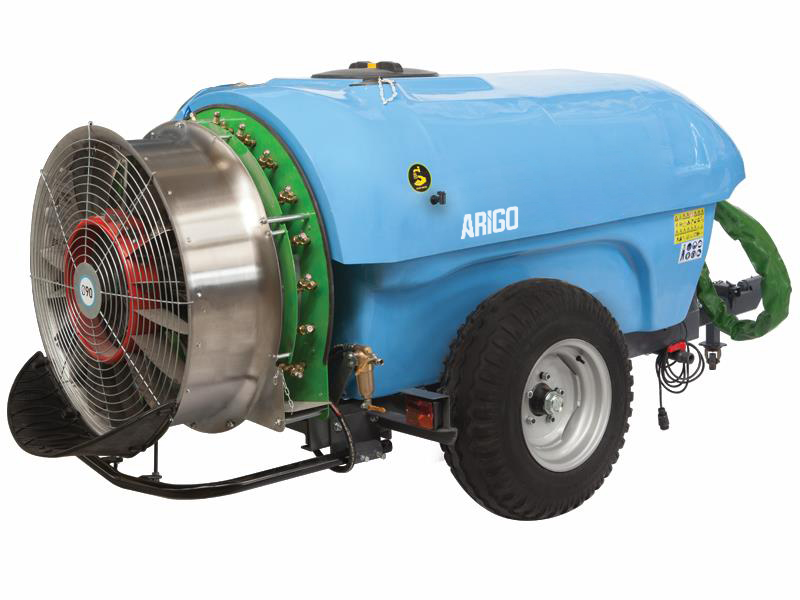

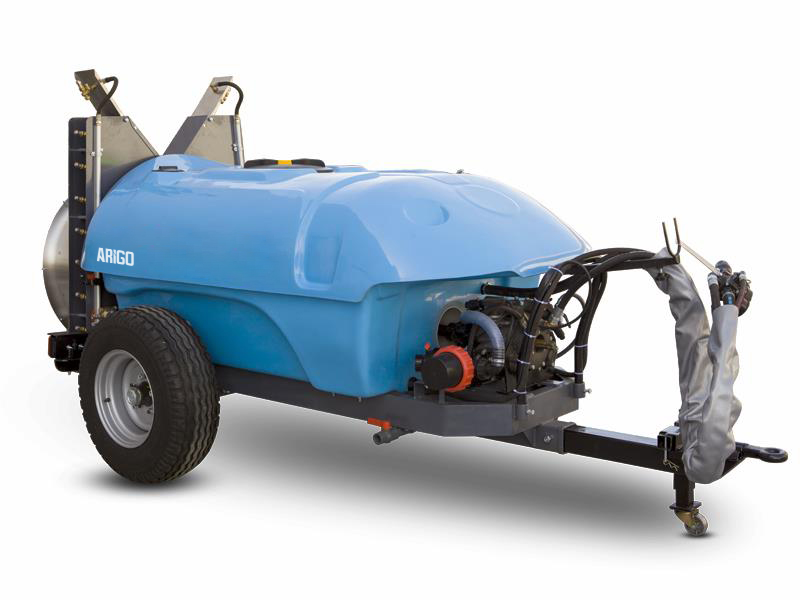

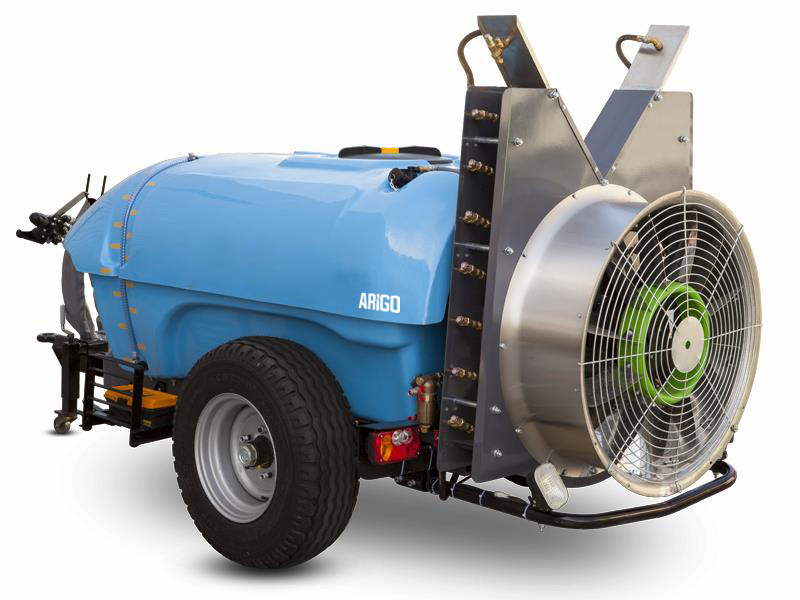

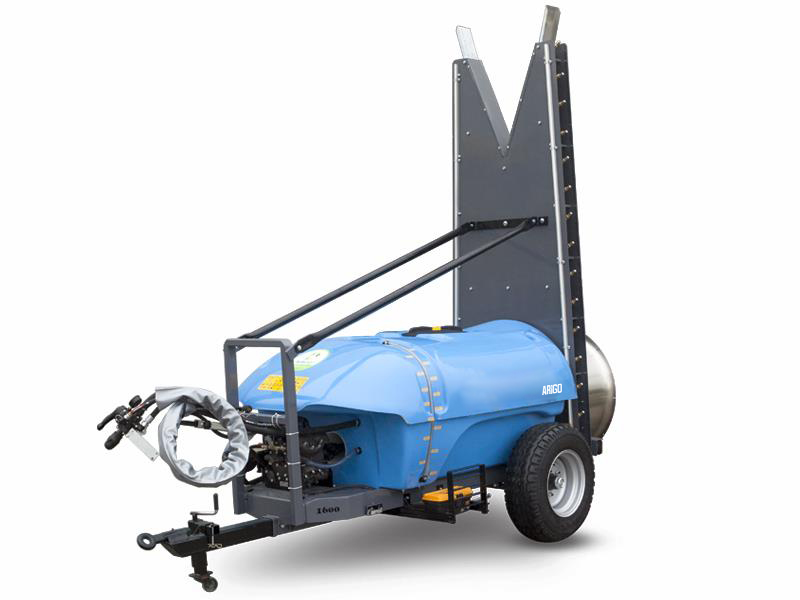

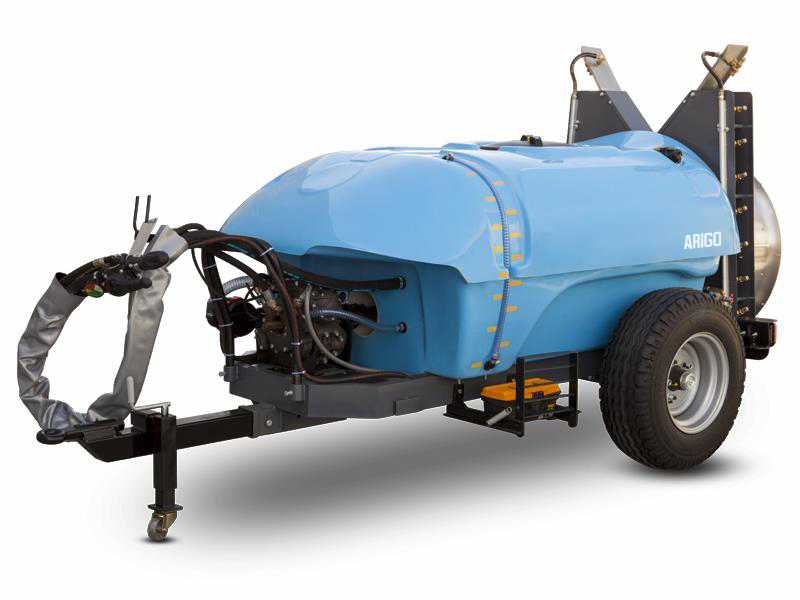

Trailed type 1000, 1600, 2000 ltr mistblower attached to the drawbar of tractor and getting drive from P.T.O. Spraying pump is getting the drive from P.T.O. and deliver the liquid under the pressure to nozzles on the spray fan. Release of the pressured air direction can be adjusted by guide wings. By means of this facility, pressured air can spray effectively each type trees 2 rowed 10-15 meters height as fruit gardens, vineyards and cultivated areas.

Technical Specifications

Specifications	Units	NLA 1000 V	NLA 1000	NLA 1100	NLA 1600	NLA 2000 R	NLA 2000	NLA 2000 F/B
Tank Capacity	L	1000 V Type	1000	1100	1600	2000 Robot Head	2000	2000 Fan/Boom
Flow	L/min	105 (Membrane Pump)	105 (Membrane Pump)	105 (Membrane Pump)	105 (Membrane Pump)	105 (Membrane Pump)	105 (Membrane Pump)	105 (Membrane Pump)
Pressure	bar	50	50	50	50	50	50	50
Power	hp/kw	13	13	13	13	13	13	13
Weight	kg	295	260	280	480	580	540	575
Lenght	a	290	290	290	315	325	325	330
Weight	b	145	145	145	165	165	165	165
Height	c	205	105	105	105	215	135	135
