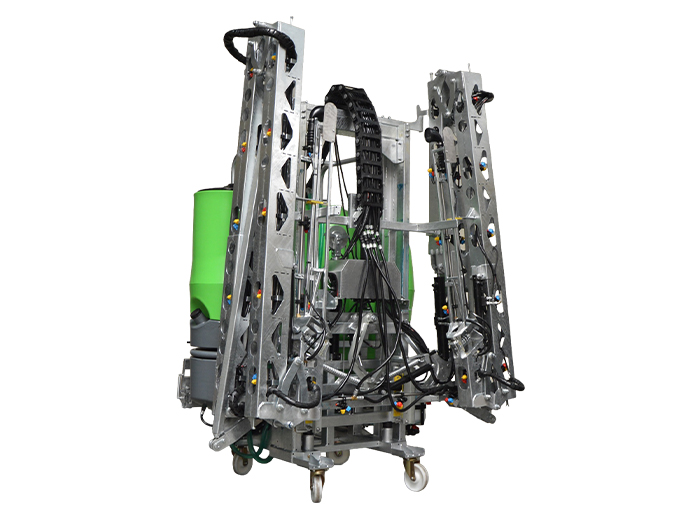

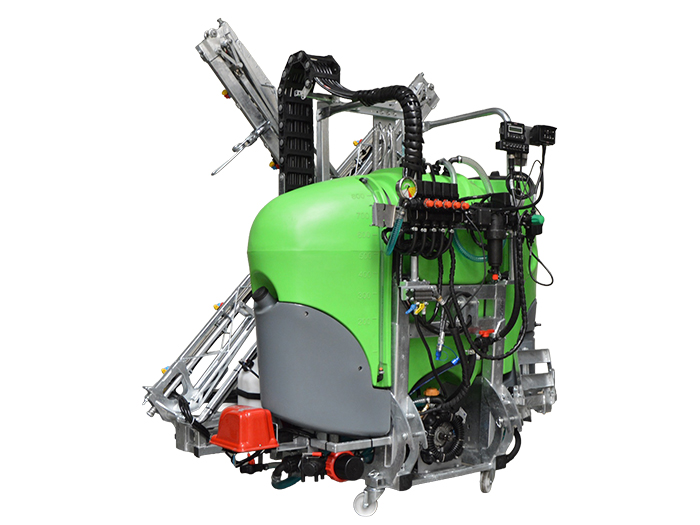

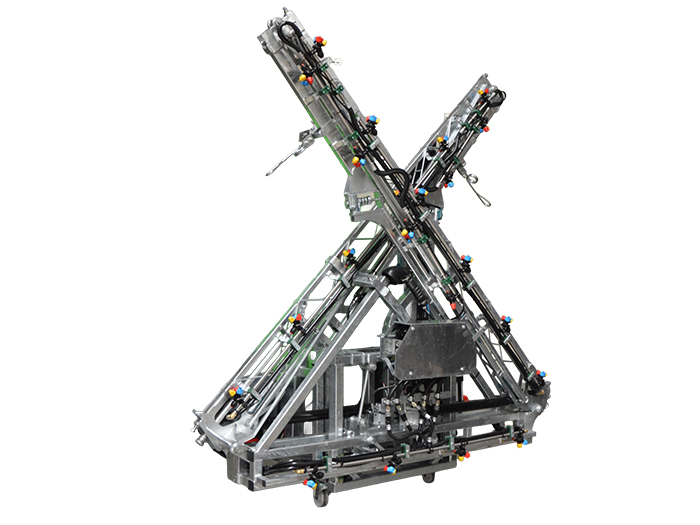

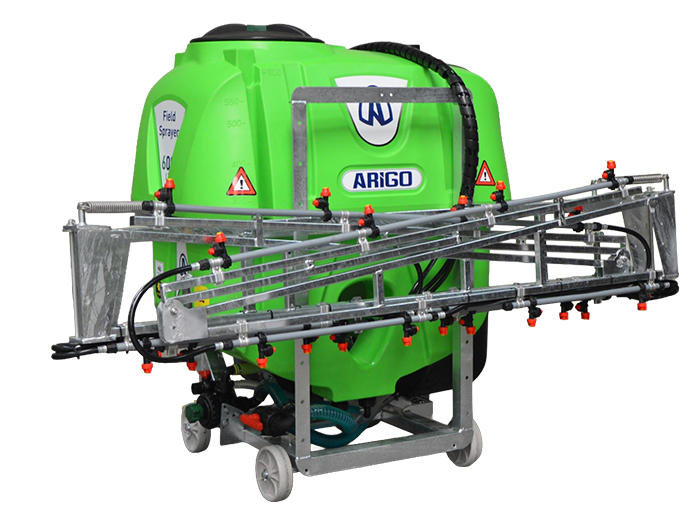

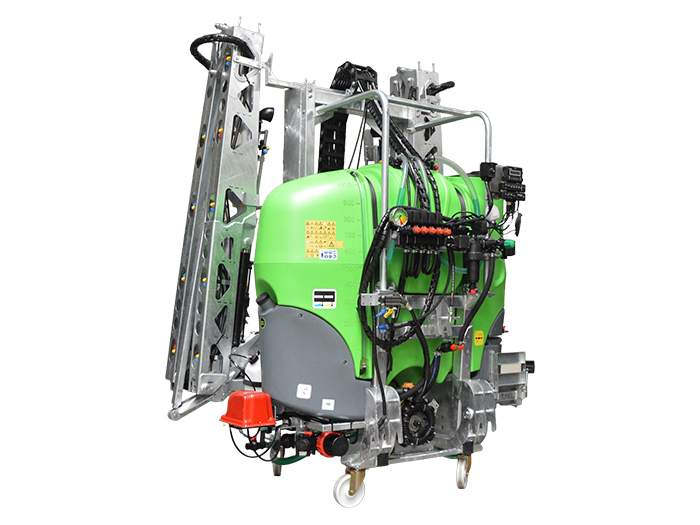

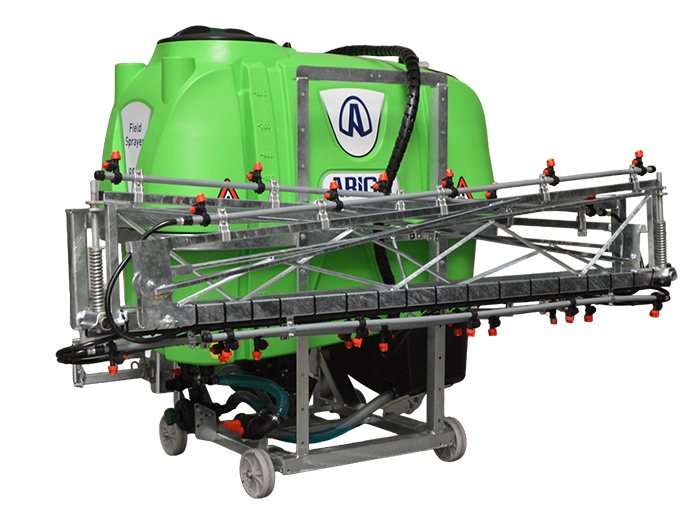

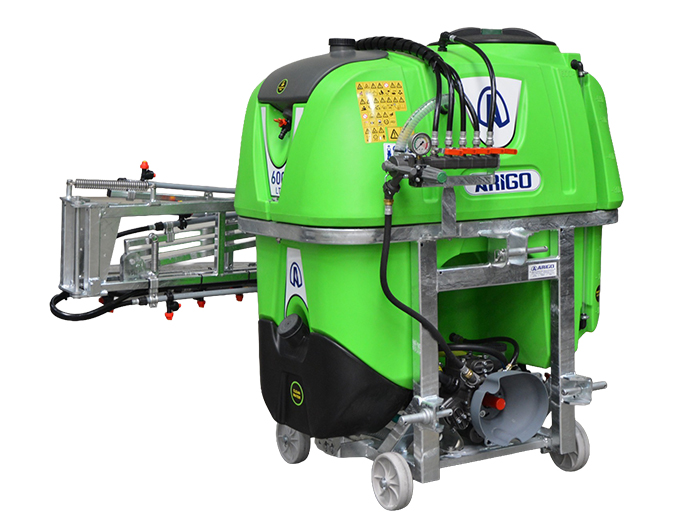

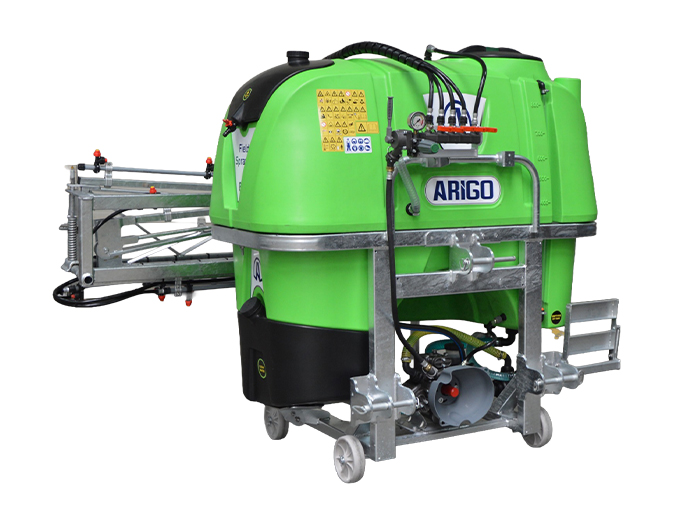

Mounted type 400, 500, 600, 800, 1000 ltr field sprayer connected to the three point linkage of tractor and getting drive from (P.T.O) are used for multipurpose plant protection.With those sprayers all kinds of field crops could be sprayed. By means of TeeJet or conical nozzles on booms, destruction of weeds and diseases which are affecting the health of plants like; wheat, barley, sorghum, corn, canola, raps, cotton, sugar beet, sunflower etc. is prevented.

Sprayer booms are produced in lenghts 8, 10, 12, 14, 16, 18 and 21 m.

Technical Specifications

Specifications	Units	ATS 400	ATS 400	ATS 600	ATS 800
Capacity	L	400	500	600	800
Total Width (W)	mm	1100	1300	1300	1500
Total Lenght (L)	mm	900	900	900	900
Total Height (H)	mm	1250	1350	1400	1700
Pump Type	-	membrane	membrane	membrane	membrane
Boom	m	8 -12	8 -12	8 -12	8 -12
Number of Regulator Outlet	pcs	3 - 7	3 - 7	3 - 7	3 - 7
Pressure Safety Valve	-	Standard	Standard	Standard	Standard
Tank Mixer	-	Standard	Standard	Standard	Standard
Tank	-	F/P	F/P	F/P	F/P
Total Weight Standard (Without Boom)	kg	92	108	115	155
Total Weight Hydraulic (Without Boom)	kg	117	133	140	180
PTO	rpm	540	540	540	540
Required Power	hp	45 - 50	50 - 55	60 - 65	70 - 80
