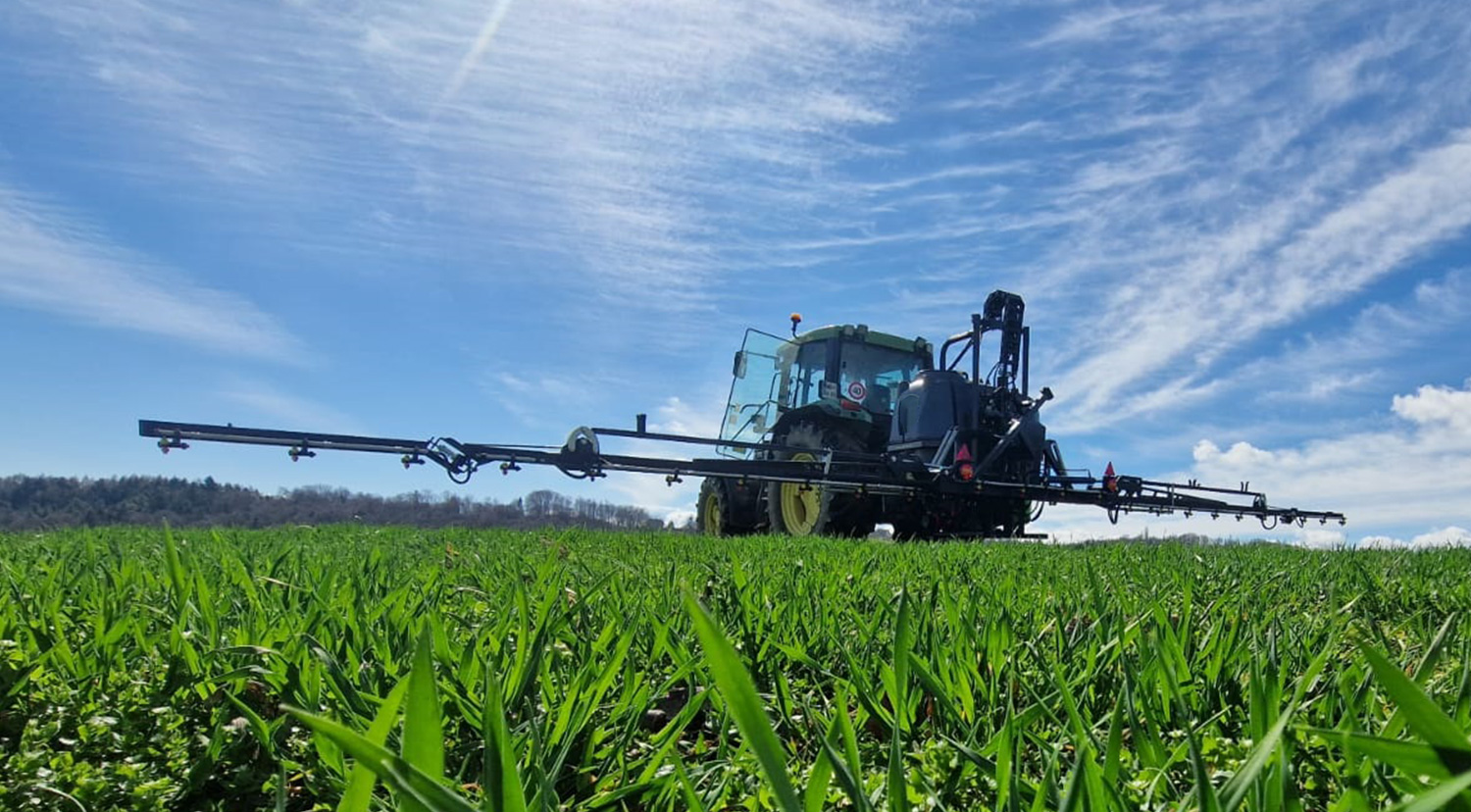

Trailed type 1000, 1600, 2000 ltr field sprayer attached to the drawbar of tractor and getting drive from P.T.O.

With those sprayers all kinds of field crops could be sprayed. By means of TeeJet or conical nozzles on booms, destruction of weeds and diseases which are affecting the health of plants like; wheat, barley, sorghum, corn, canola, raps, cotton, sugar beet, sunflower etc. is prevented.

Clean water hand washing tank is equipped on machine.

Technical Specifications

Specifications	Units	ASCH 1000	ASCH 1600	ASCH 2000
Capacity	L	1000	1600	2000
Total Width (W)	mm	2650	2650	2650
Width without boom (W1)	mm	1500	1650	1650
Total Lenght (L)	mm	2950	2950	3700
Lenght without drawbar (L1)	mm	1950	1950	2300
Total Height (H)	mm	2200	2200	2200
Height (H1)	mm	1350	1350	1350
Pump Type	-	membrane	membrane	membrane
Total Weight Standard (Without Boom)	kg	325	375	405
PTO	rpm	540	540	540
Required Power	hp	45 - 70	45 - 70	45 - 70
